Our Products

SPE Fittings is a one-stop solution specializes in steel fabrication products, forged or machined parts, CNC machining services, precision engineering works, and all kinds hydraulic system & products.

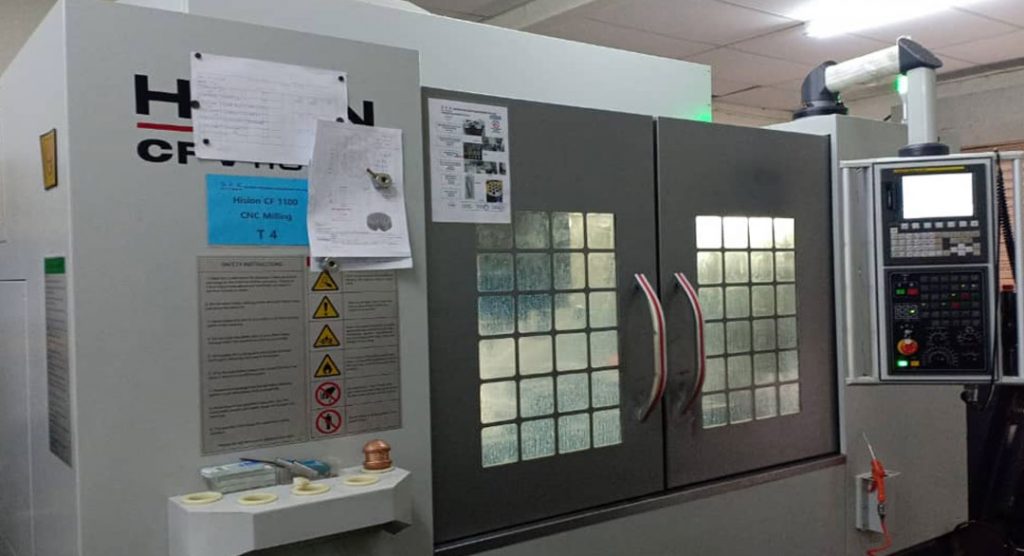

Hision CFV-1100 Milling Machine

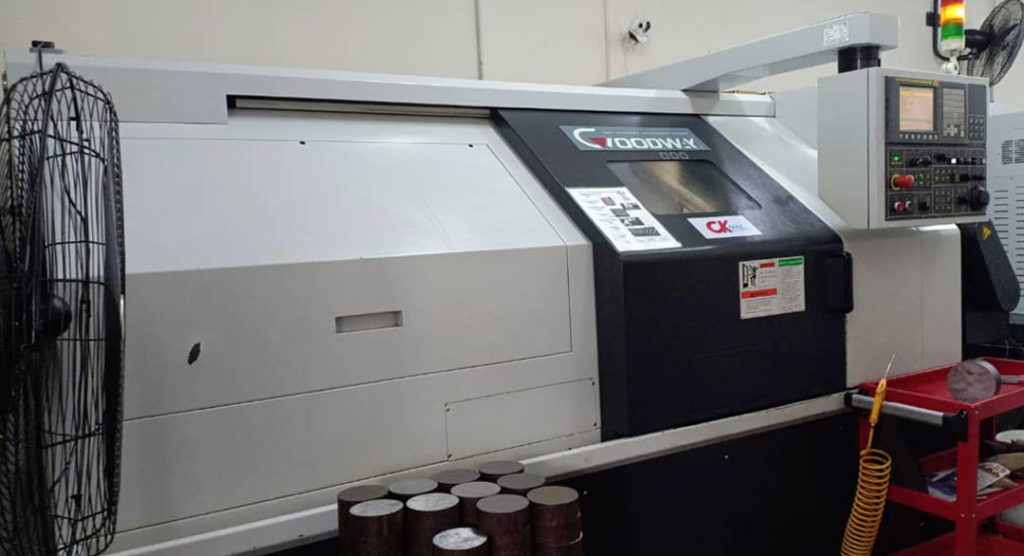

GOODWAY GLS 2800 CNC TURNING

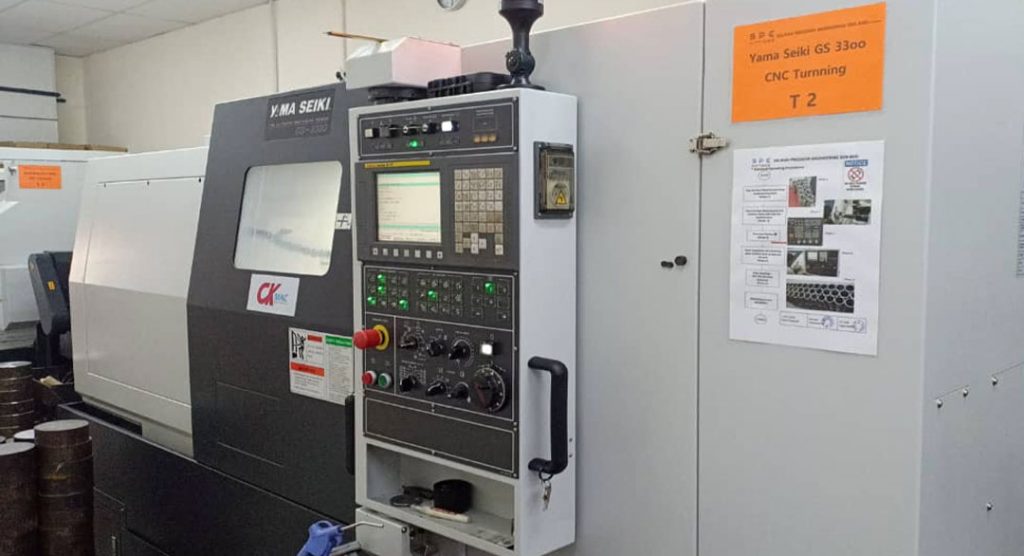

YAMA SEIKI GS 3300 CNC TURNNING

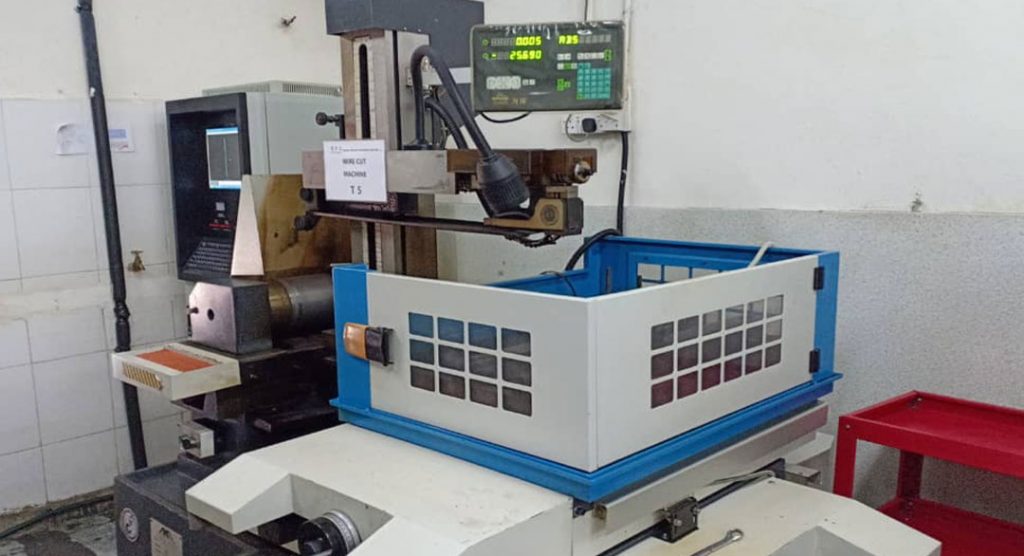

WIRE CUT MACHINE

HISION CFV 1100

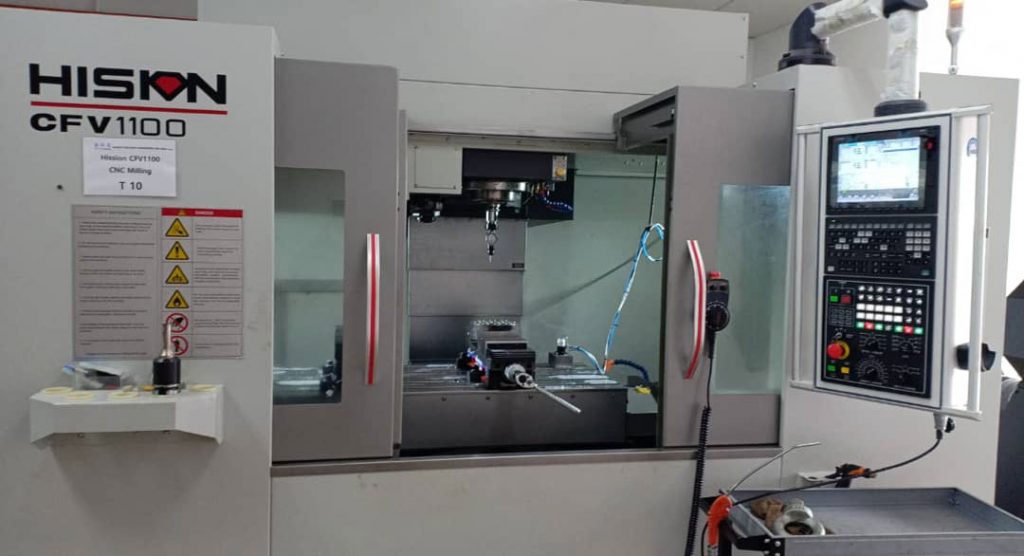

HISION CFV 1100 CNC MILLING

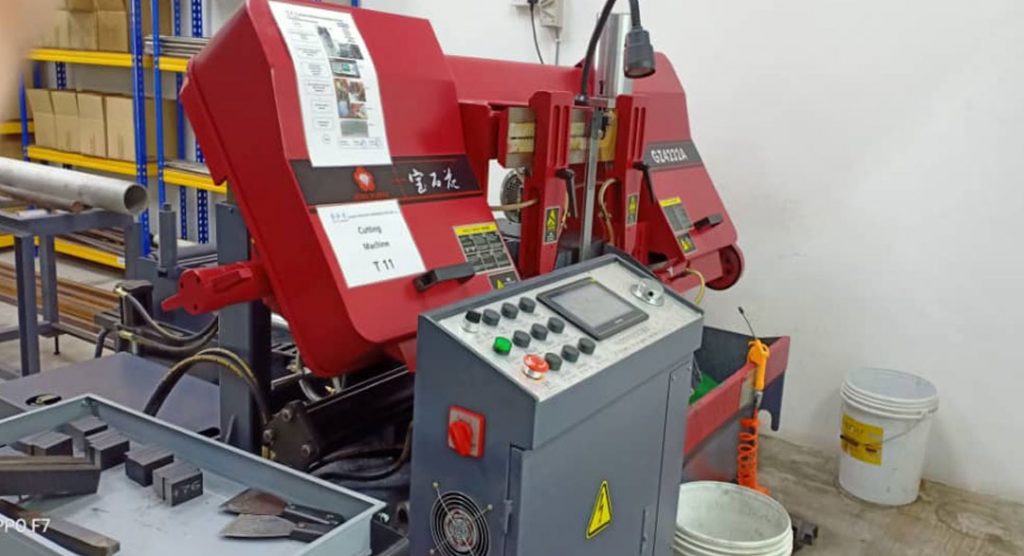

GZ4232A CUTTING MACHINE

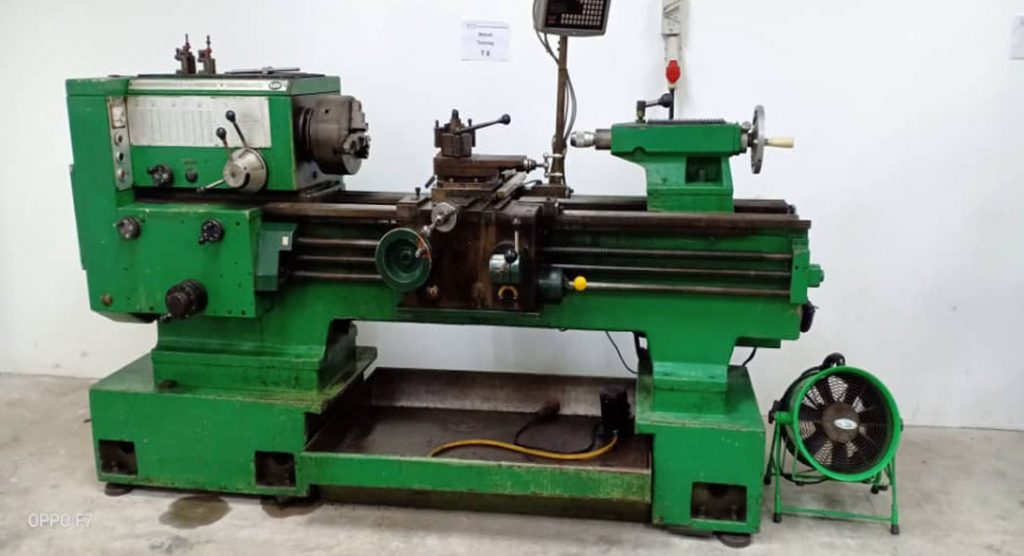

MANUAL MILLING,WIRE CUT MACHINE,MANUAL TURNNING

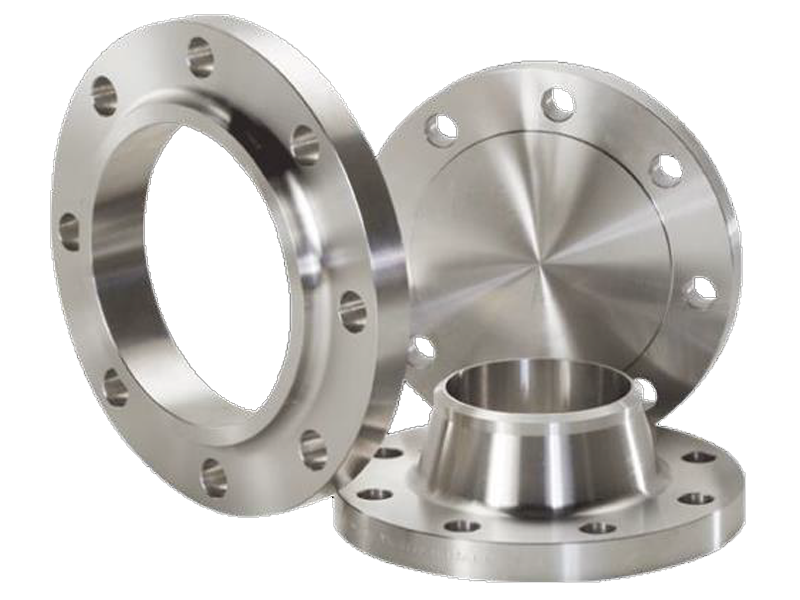

FLANGES

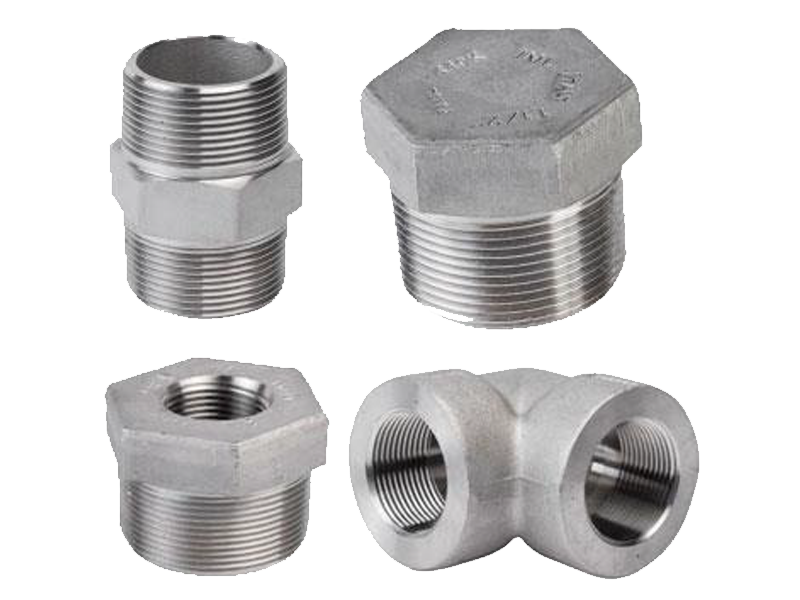

THREADED FITTINGS

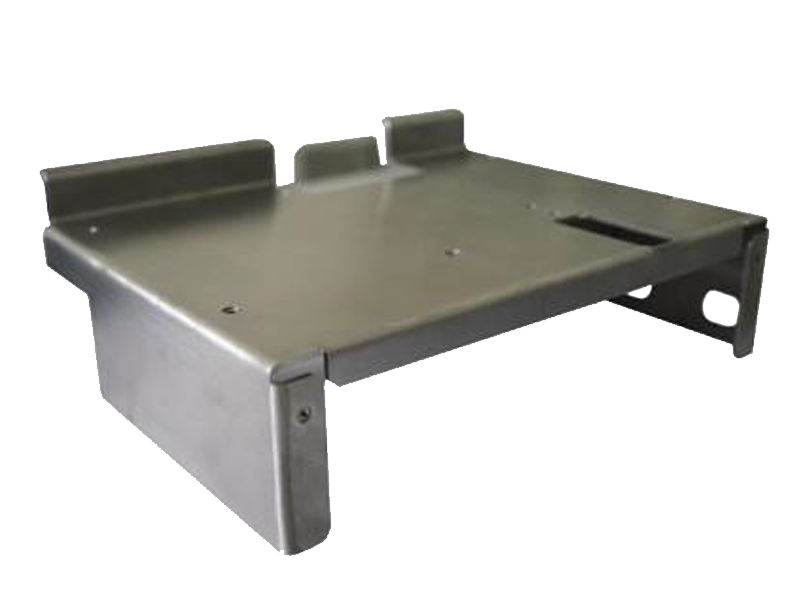

STEEL FABRICATION AND MACHINING

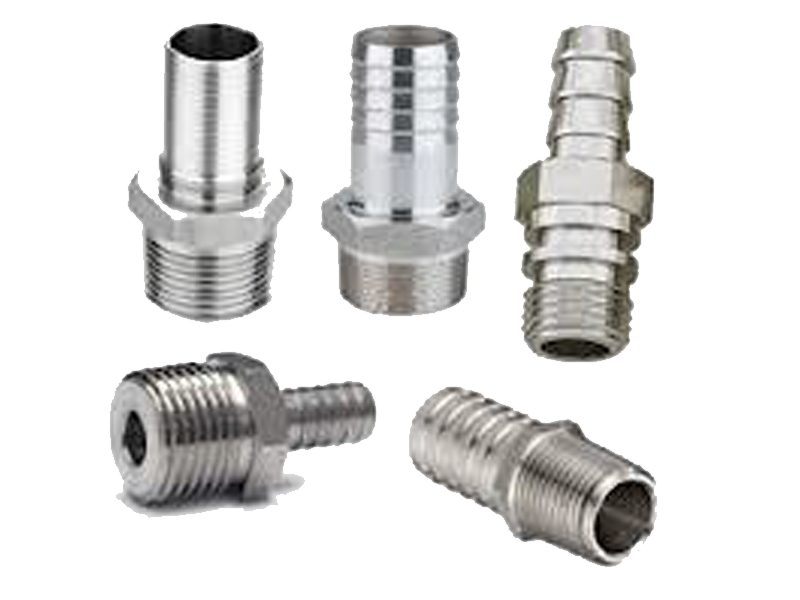

HOSE FITTINGS

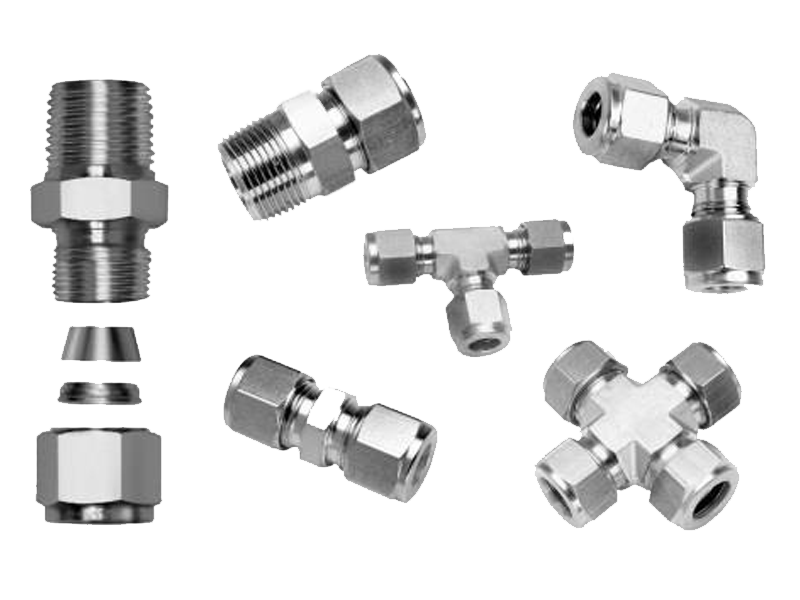

TUBE FITTINGS

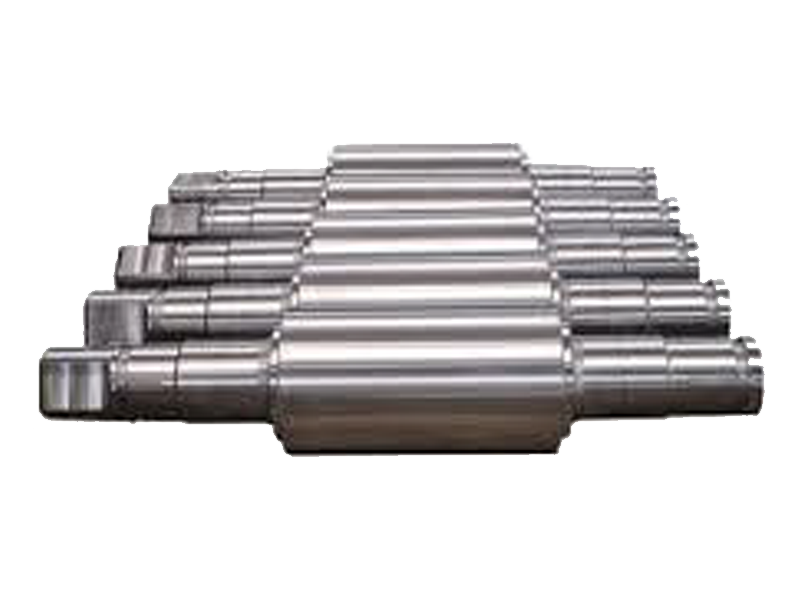

ROLLER AND SHAFT

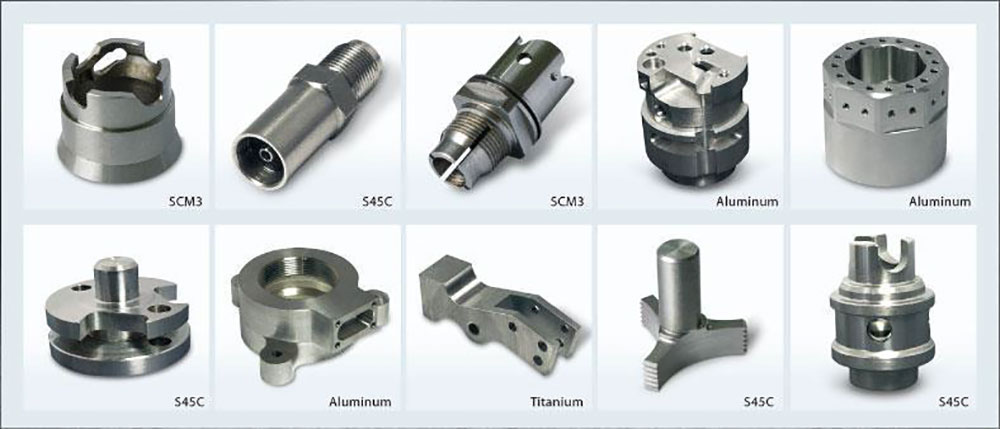

SAMPLE SPECIAL CUSTOM MADE

SALIRAN PRECISION ENGINEERING SDN.BHD

Hision CFV-1100 Milling Machine

Y-AXIS (OPTIONAL)
Max.Turning Diameter	Ø400 mm 15.75”
Max. Y-axis travel	100mm= ± 50mm	4” = ± 2”
Y-axis rapids	10m/min	393 IPM
Feed Rates	1 ~ 4,800 mm/min	1~189 IPM
X/Y axes servo motor	4.5/4Kw	6/5.3 HP
X-axis ball screw ø / pitch	Ø 36mm (10 mm)	Ø 1.42” (0.39”)
Y-axis ball screw ø / pitch	Ø 32mm (8 mm)	Ø 1.26” (0.31”)
X/Y axes thrust (Cont.)	1,409 / 1,761 Kgf	3,106 / 3,882 lbf

SUB-SPINDLE (OPTIONAL)
Chuck Size	8″
Spindle Bearing Diameter	Ø 100 mm	3.49″
Spindle Nose	A2-6
Motor Output	15 / 18.5kW (Cont. / 15min)	20 / 25 HP
Spindle Drive System	Built-in motor
Spindle Speed Range	5,000 rpm
Spindle Torque	95 / 118 Nm (Cont / 15min)	70 / 87 lb-ft
Zs-axis travel	680 / 1,430mm	26.77″ / 56.3″
Zs-axis rapid	30 m / min	1,181 IPM
Slide way type	Linear guide way
Zs-axis servo motor	3 Kw	4 HP
Zs-axis ball screw Ø (pitch)	Ø 36 mm (10 mm) / Ø 40 mm (12 mm)	Ø 1.42″ (0.39″) / Ø 5.51″ (0.47″)
Zs-axis thrust (Cont.)	769 / 640 Kgf	1,695 / 1,410 lbf

TAILSTOCK
Quill Center Taper (Quill Programmable Tailstock)	MT#4 – Dead Center, Quill Diameter Ø 110 mm	4.33″
	MT#5 – Live Center, Quill Diameter Ø 120 mm	4.72″
Servo Tailstock (Opt.)	MT#3 – Dead Center, Quill Diameter Ø 80 mm	3.15″
	MT#4 – Live Center
Quill Programmable Tailstock: 150 mm 5.9″	Quill Programmable Tailstock: 650 / 1,400 mm	25.6″ / 66.93″
	Servo Tailstock: 700 / 1,450 mm	27.56″ / 57.09″
Programmable quill / base	Quill Programmable Tailstock: 650 / 1,400 mm

GENERAL
Repeatability on X-axis	± 0.003 mm	± 0.00012″
Repeatability on Z-axis	± 0.003 mm	± 0.00012″
Standard CNC Control	FANUC O ¡-TF (Opt. 31)
Voltage / Power Requirement	AC 200/220 / 40 KVA
Hydraulic Tank Capacity	30 L	7.9 GAL
Coolant Tank Capacity	290 / 330 L	76 / 87 gal
Coolant Pump	0.7 Kw 1 HP (60 Hz) rated at 3 bar (44 PSI)
Machine Weight	6,500 / 8,500 Kg	14,400 / 18,800 lb
Dimension L X W X H	3,550 x 2,120 x 1,800 / 4,420 x 2,200 x 1,870 mm	140″ x 86.5″ x 70.9″ / 175″ x 87″ 73.6″
	Y-axis model: 3,550 x 2,120 x 2,260 / 4,420 x 2,200 x 2,260 mm	140″ x 86.5″ x 89″ / 175″ x 87″ 89″
